Bit Planes may sound like an obscure technical term, but they are a fundamental concept in digital image processing and computer graphics. Whether you’re a tech enthusiast, a student, or a professional in the field, understanding bit plane can unlock new levels of clarity when working with visual data. In this article, we’ll dive deep into the concept of bit planes, their significance, and how they’re applied in modern technology.
1. What Are Bit Planes?
At its core, a bit plane refers to a specific layer of binary data within a digital image. Each pixel in an image is represented by a set of binary values, and each binary digit (or bit) forms part of a plane that contributes to the overall composition of the image.
Breaking It Down
To understand this better, consider an 8-bit grayscale image. Each pixel in such an image can have values ranging from 0 to 255, which are represented by 8 bits (a sequence of binary numbers such as 10101010). These 8 bits can be separated into 8 distinct layers, or bit planes, each corresponding to a specific bit position across all pixels in the image.
The Hierarchy of Bit Plane
- Most Significant Bit (MSB): The top bit in the binary representation, contributing most to the pixel’s intensity.
- Least Significant Bit (LSB): The bottom bit, contributing the least to the pixel’s intensity.
- The bits in between hold varying levels of significance in determining the overall intensity or color of a pixel.
Visualizing Bit Planes

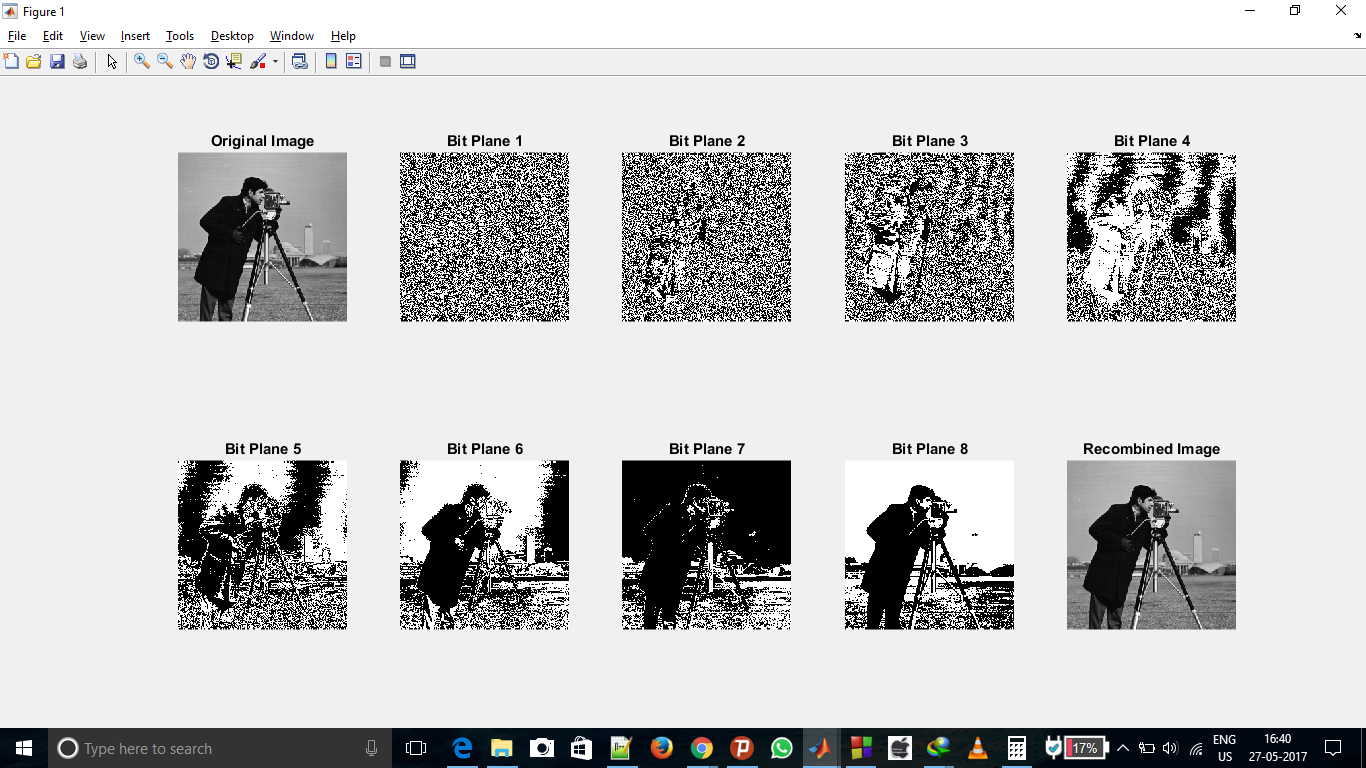

If you were to extract and display each bit plane as a separate image, you would notice a progression of detail. The MSB plane would often represent the most discernible features, while the LSB plane may appear as random noise.
2. Importance of Bit Planes in Image Processing
Bit planes are more than just a theoretical construct; they play a crucial role in several practical applications. By analyzing and manipulating bit plane, one can achieve a variety of image processing tasks.
Simplifying Image Data
One of the main reasons for separating an image into bit planes is to simplify the data. By isolating specific planes, you can focus on particular aspects of an image without being overwhelmed by the entire dataset. For example:
- The higher-order bit plane (like the MSB) contain the essential structure and features of an image.
- The lower-order bit plane are often used for minor details or additional data, such as watermarks.
Enhancing Image Quality
Bit plane slicing, a technique that isolates certain bit planes, can enhance the visual quality of an image. By removing noise from lower-order planes or focusing on higher-order planes, the overall image becomes clearer and more defined.
Applications in Data Compression
In compression algorithms, such as those used in JPEG or PNG formats, bit planes are utilized to prioritize which parts of an image are retained with higher fidelity. Lower-order planes may be compressed more heavily since they contribute less to perceived image quality.
3. Bit Planes in Color Images
While grayscale images offer a straightforward application of bit plane, color images introduce additional complexity. Each color channel (red, green, and blue in an RGB image) has its own set of bit plane, multiplying the amount of data that can be analyzed and processed.
Decomposing Color Images
For an 8-bit RGB image:
- The red channel is represented by 8 bit plane.
- The green channel is represented by another 8 bit plane.
- The blue channel is represented by yet another 8 bit plane.
This results in 24 separate bit planes for a single image. Each plane can reveal unique patterns or data within its respective color channel.
Applications in Steganography
One intriguing application of bit planes in color images is steganography, the practice of hiding data within an image. By embedding information in the least significant bit (LSB) planes of color channels, it becomes nearly imperceptible to the naked eye. This technique is widely used for secure communication and digital watermarking.
4. Techniques for Working with Bit Plane
To effectively work with bit planes, several methods and tools are commonly used in the field of image processing.
Bit Plane Slicing
Bit plane slicing involves extracting one or more bit planes from an image. This technique is useful for:
- Analyzing the contribution of each bit to the overall image.
- Highlighting specific features or patterns within an image.
- Enhancing image clarity by focusing on higher-order planes.
Image Reconstruction
After analyzing or manipulating individual bit planes, they can be recombined to reconstruct the original image. This process ensures that the essential characteristics of the image are preserved while allowing for targeted modifications.
Tools and Software
Several software tools and programming languages support bit plane analysis and manipulation:
- MATLAB: Offers built-in functions for bit plane slicing and image processing.
- Python with OpenCV: A versatile library for handling images, including bit plane decomposition.
- Adobe Photoshop: While not specifically designed for bit planes, advanced users can manually manipulate layers to achieve similar effects.
5. Real-World Applications of Bit Planes
The concept of bit planes extends beyond academic exercises and finds use in several real-world applications.
Medical Imaging
In medical diagnostics, bit planes are used to enhance and analyze images from CT scans, MRIs, and X-rays. By isolating specific planes, medical professionals can detect subtle anomalies that might otherwise go unnoticed.
Satellite Imagery
Satellite images often contain vast amounts of data. Bit plane slicing helps in highlighting features like terrain, vegetation, or water bodies, making it easier to interpret and analyze geographic information.
Digital Forensics
In digital forensics, bit planes assist in uncovering hidden information within images, such as steganographic data or tampered regions. Forensic experts can extract these planes to reveal clues about an image’s authenticity and origin.
6. The Future of Bit Planes
As technology advances, the role of bit planes in image processing is likely to grow. Emerging fields such as artificial intelligence and quantum computing are opening new avenues for their application.
AI and Machine Learning
AI models that process visual data can benefit from bit plane analysis. By feeding these models with structured data from individual bit planes, their performance in tasks like object recognition and image classification can be enhanced.
Quantum Image Processing
Quantum computing introduces the possibility of processing bit planes at unprecedented speeds. This could revolutionize fields like cryptography, where secure data transmission relies heavily on bit-level manipulation.
Conclusion
Bit planes may seem like a technical niche, but their impact on digital image processing is undeniable. From simplifying data and enhancing images to enabling groundbreaking applications in fields like medical imaging and digital forensics, bit planes offer a unique lens through which to view and manipulate visual data. As technology continues to evolve, understanding and harnessing the power of bit planes will remain a critical skill for professionals in the digital age.
